Mauritania

Islamic Republic of Mauritania, Muritaniya, Al-Jumhuriyah Al-Islamiyah Al-Muritaniyah, Mauritanie

2:3
by Zeljko Heimer 27 December 1995, colours corrected by Antonio Martins 2000
Flag adopted 1 April 1959, coat of arms adopted 3 August 1960.

The Flag of Mauritania
Construction sheet
Aircraft markings
Mauritanian Political Parties

See also:

Western Sahara that is claimed partly by Mauritania.

The Flag of Mauritania

Adopted on 1 April 1959, Mauritania's flag emphasizes its African location, its majority Islamic faith and the name of the nation - Republique Islamique de Mauritanie. The colors green and gold are two of the Pan-African colors which reflect Mauritania's position as an African nation. The star and crescent are well-known Islamic symbols. The flag's proportion is 2:3.

Sources: Smith, Flags and Arms across the World, 1980 [smi80]; Talocci, Guideto the Flags of the World, 1982 [tal82]; Crampton, Flags of the World, 1990 [cra90i]

Paige Herring, 13 June 1998

Carr 'Flags of the World', 1961, [car61] mentions "the Decree [on the adoption of the flag] signed on April 1st 1959". Rabbow, in 'DTV-Lexikon politischer Symbole', 1970 [rab70] states: 'The flag is anchored in the Constitution of 22 March 1959.'

Carr (op. cit.) has this: "An emerald green flag, proportion three to two, bearing a crescent and five-pointed star, in gold, in the center thereof." Znamierovski [zna99] has this: "The green and the crescent are both symbols of Islam; the green also represents hope for a bright future. The yellow stands for the Sahara Desert."

Jarig Bakker, 5 July 2000

According to a friend from Mauritania, the flag was selected (perhaps also designed) personally by the former president Mukthar Ould Dada.

Jaume Ollé, 11 July 2000

It appears there is no existing official specification of the construction sheet. In most examples, it seems that the larger circle forming the crescent very roughly (depending on the source) matches the "73 of the hoist. The inner circle, at least in Album 2000, seems to match 60% of the hoist. The star seems to be inscribed in a circle with diameter around 1/4 of the hoist. Also, it seems that the horizontal line of the star if extended would just touch the horns of the crescent - but these are all speculations.

Zeljko Heimer, 19 June 2002

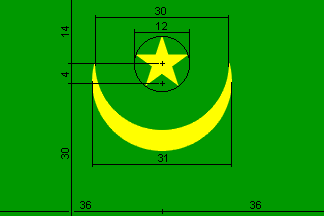

Construction sheet

by Zeljko Heimer

Christopher Southworth posted me a construction sheet of the Mauritanian national flag. His source is the Flag Institute specification as collected by Dr. Crampton. The specification gives a hoist of 192 units. It also shows the fly length as 192 units, but this must simply be an error or typo introduced at some point, as Christopher agrees, so I dismiss that and take the fly length as 288 (as 2:3 ratio is clearly stated). On the vertical median, 56 units from top is the center of a circle in which the star is inscribed, radius of it being 24. The same point is also center of the circle determining the upper edge of the crescent, with radius 60. The lower circle determining the crescent is 16 units lower (i.e. 72 from top) with radius 62.

Somewhat arranging these dimensions to get a nicer order on the sheet, and changing the unit by factor 4 (which gives smaller but still whole numbers), one gets a rather nice construction sheet that yields a quite well balanced flag. Of course, the question is where did Crampton got these dimensions?

Zeljko Heimer, 27 January 2003

Aircraft Markings

by Zeljko Heimer

A note in Album 2000 indicates the national flag is painted on the fin.

Zeljko Heimer, 19 June 2002
